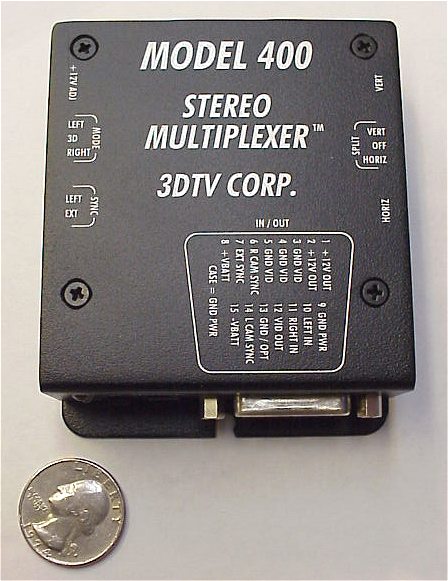

Model 400 Stereo Multiplexer™ - The Model 400 combines signals
from two video cameras into one output. Each video input is DC clamped. PAL & NTSC
compatible. Ultra miniature, rugged construction. Battery powered, or optionally powered
by an external supply. Wide voltage range power input.
OPERATION NOTES
- The Mode switch selects the Left Camera, Right Camera, or 3D (multiplexed) signal to the
output.
- The Sync switch syncs the Right Camera from the Left Camera's video signal, or syncs
both cameras from an external source.
- The Split Screen switch selects Vertical, Horizontal, or Off (no split) for parallax
adjustment with accessible trimmers.
- There is an ON/OFF switch with an indicator LED , and a Low Battery indicator LED.
- There are 12VDC regulated (1 Amp max) power feeds for the two cameras.
- The 12VDC is adjustable +-10%.
- All connections are made through a DB15 female (except optional external power supply).
DB15 Pinout:
- Power +12v for camera 1
- Power +12v for camera 2
- Video gnd
- Video gnd
- Video gnd
- Sync out to Right camera
- External sync in
- +V Batt input (pos)
- Power Gnd for cameras
- Input from Left camera
- Input from Right camera
- Video Output
- Options *
- Sync out to Left camera
- -V Batt input (neg)
The case is connected to pin 9 (Power Gnd for cameras)
* Pin 13 can be factory configured for one of three options:
1. Gnd (output): an additional video Gnd for cameras (default factory configuration)
2. Mode: Forces the Mode Switch (input) Open (no signal) = 3D
- 0V (low) = Left
- +5v (high) = Right
- To use this the Mode Switch must be in the 3D position, and the Split Switch must be in
the OFF position.
3. Power Saver (input)
- 0V (low) = Reduces power consumption
- (Must float for normal power , use only dry contact or open collector output).
- Battery and Power input: 4.2 to 16VDC, 15 Watts.
- The optional external power supply is center positive. When connected it switches out
the battery.
- Size: 3.105 x 2.925 x 1.043 inches
- Detachable mounting base: 3.75 x 2.95 inches
